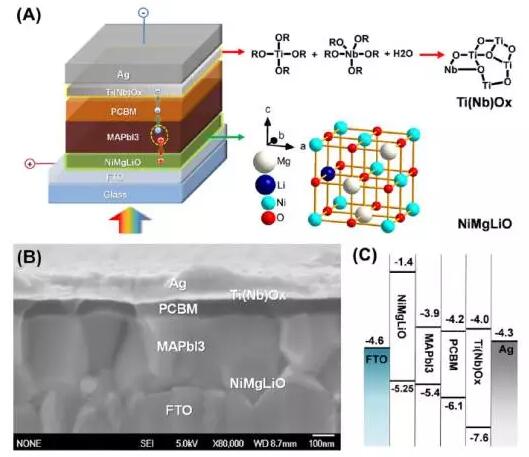

The recent stunning rise in power conversion efficiencies (PCEs) of perovskite solar cells (PSCs) has triggered worldwide intense research. However, high PCE values have often been reached with poor stability at an illuminated area of typically less than 0.1 cm2. We used heavily doped inorganic charge extraction layers in planar PSCs to achieve very rapid carrier extraction even with 10-20 nm thick layers avoiding pinholes and eliminating local structural defects over large areas. This robust inorganic nature allowed for the fabrication of PSCs with an aperture area >1 cm2 showing a power conversion efficiency (PCE) >15% certified by an accredited photovoltaic calibration laboratory. Hysteresis in the current-voltage characteristics was eliminated; the PSCs were stable: >90% of the initial PCE remained after 1000 hours light soaking.
Published Online October 29 2015
Science DOI: 10.1126/science.aad1015
http://www.sciencemag.org/content/early/2015/10/28/science.aad1015.abstract
中文报道：http://www.x-mol.com/news/1222
