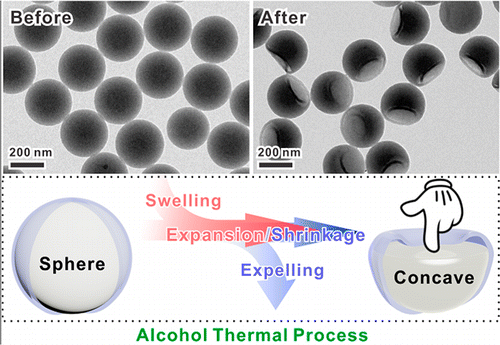

We have developed a facile procedure that can create asymmetrical building blocks by uniformly deforming nanospheres into C∞v symmetry at low cost and high quality. Concave polystyrene@carbon (PS@C) core-shell nanospheres were produced by a very simple microwave-assisted alcohol thermal treatment of spherical PS@C nanoparticles. The dimensions and ratio of the concave part can be precisely controlled by temperature and solvents. The concavity is created by varying the alcohol-thermal treatment to tune the swelling properties that lead to the mechanical deformation of the PS@C core-shell structure. The driving force is attributed to the significant volume increase that occurs upon polystyrene core swelling with the incorporation of solvent. We propose a mechanism adapted from published models for the depression of soft capsules. An extrapolation from this model predicts that the rigid shell is used to generate a cavity in the unbuckled shell, which is experimentally confirmed. This swelling and deformation route is flexible and should be applicable to other polymeric nanoparticles to produce asymmetrical nanoparticles.

http://pubs.acs.org/doi/full/10.1021/jacs.5b05027
